Prepainted PE Aluminum Coil for Rolling Shutters

Prepainted PE aluminum coil for rolling shutters is a lightweight, corrosion-resistant, and formable coil material designed for shutter slats, garage doors, shopfront shutters, window protection systems, and architectural sunshade components. It combines aluminum substrate strength with a polyester coating system, making it suitable for roll forming, punching, slitting, and continuous shutter production.

Product Positioning in Rolling Shutter Manufacturing

Rolling shutters require a material that can be formed into narrow, curved, or interlocking slats while maintaining surface appearance and dimensional stability. Prepainted PE aluminum coil is positioned as an efficient coil-fed material for continuous production lines because the coating is applied before forming, reducing post-painting operations and helping maintain consistent color from batch to batch.

Compared with bare aluminum, PE coated aluminum coil provides improved decorative performance, better surface protection, and stable processing behavior. Compared with heavier steel shutter materials, aluminum offers lower density, easier handling, and natural oxidation resistance, which is especially valuable for residential, commercial, and light industrial shutter systems.

Coating Structure and Surface Characteristics

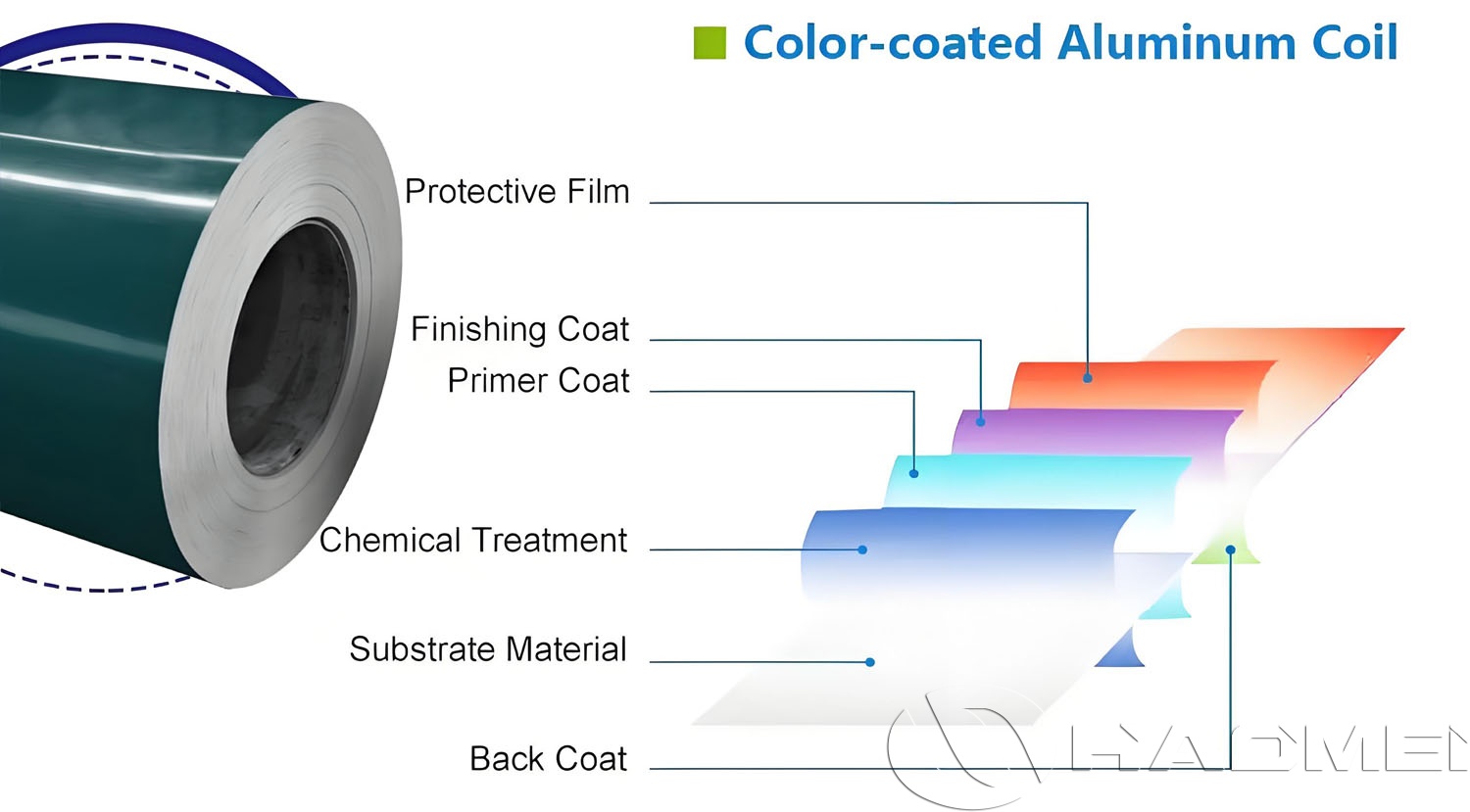

A typical PE coated aluminum coil for shutters is produced through pretreatment, primer coating, polyester top coating, and controlled oven curing. The coating system is designed to achieve adhesion, flexibility, gloss control, color uniformity, and resistance to daily weathering.

The surface can be supplied in solid colors, metallic colors, matte finishes, high-gloss finishes, and wood grain patterns. For rolling shutters, coating flexibility is particularly important because the slats are formed with curved profiles and may be bent repeatedly during opening and closing. A qualified PE coating system normally maintains adhesion after forming and resists cracking on moderate bends when the substrate and coating thickness are properly matched.

The product category is closely related to PE Coated Aluminum Coil, but rolling shutter applications place stronger emphasis on roll-forming stability, edge quality after slitting, and surface durability during repeated mechanical movement.

Core Specifications of Prepainted PE Aluminum Coil for Rolling Shutters

Commonly Used Aluminum Alloys

1050 and 1060 Aluminum Alloy

1050 and 1060 are high-purity 1000 series aluminum alloys with excellent ductility, corrosion resistance, and surface coating compatibility. They are often used where easy forming, light weight, and smooth surface appearance are the main priorities. For shutter slats with simple profiles or thinner gauges, these alloys provide stable processing performance and good coating adhesion after proper chemical pretreatment.

1100 Aluminum Alloy

1100 aluminum offers slightly higher strength than ultra-high-purity grades while maintaining good workability. It is widely used in decorative and architectural color coated products. In rolling shutter applications, 1100 is suitable for profiles requiring clean roll forming, consistent surface flatness, and reliable paint performance.

3003 Aluminum Alloy

3003 is an Al-Mn alloy with better mechanical strength than 1000 series aluminum while retaining good formability and corrosion resistance. It is one of the commonly selected alloys for shutter slats that require improved rigidity. 3003 Color Coated Aluminum Coil is frequently associated with building envelope components, decorative panels, and formed profiles where balanced strength and processability are needed.

3004 and 3105 Aluminum Alloy

3004 and 3105 are also manganese-containing alloys used where higher strength, better dent resistance, and stable roll-forming performance are required. For wider shutter profiles or applications exposed to frequent operation, these alloys can provide improved structural stability while still supporting continuous coating and forming processes.

Performance Requirements for Rolling Shutter Use

The performance of aluminum shutter coil is determined by the coordination of substrate, temper, coating thickness, curing condition, and surface protection. The main technical requirements include coating adhesion, bending resistance, color consistency, abrasion resistance, and dimensional control after slitting.

During shutter production, the coil passes through decoiling, leveling, roll forming, cutting, and assembly. The coating must withstand contact with forming rollers without obvious scratches, peeling, or gloss variation. For dark colors and metallic finishes, process cleanliness and roller surface condition are especially important because surface defects are more visible.

Key performance considerations include:

• Formability: The aluminum temper must match the slat profile depth and bending radius.

• Coating adhesion: Pretreatment and primer quality influence resistance to peeling during forming.

• Surface hardness: PE coating provides balanced flexibility and scratch resistance for general architectural use.

• Weather resistance: Polyester coating supports outdoor performance for common residential and commercial environments.

• Color stability: Controlled coating thickness and oven curing help maintain batch-to-batch consistency.

• Edge quality: Precision slitting reduces burrs, coating damage, and assembly interference.

Decorative Options for Shutter Systems

Rolling shutters are not only functional building components but also visible exterior elements. PE prepainted aluminum coil can be supplied in neutral architectural colors such as white, beige, grey, silver, bronze, and black. Wood grain finishes are also used when the shutter surface needs a warmer decorative appearance while retaining the advantages of aluminum.

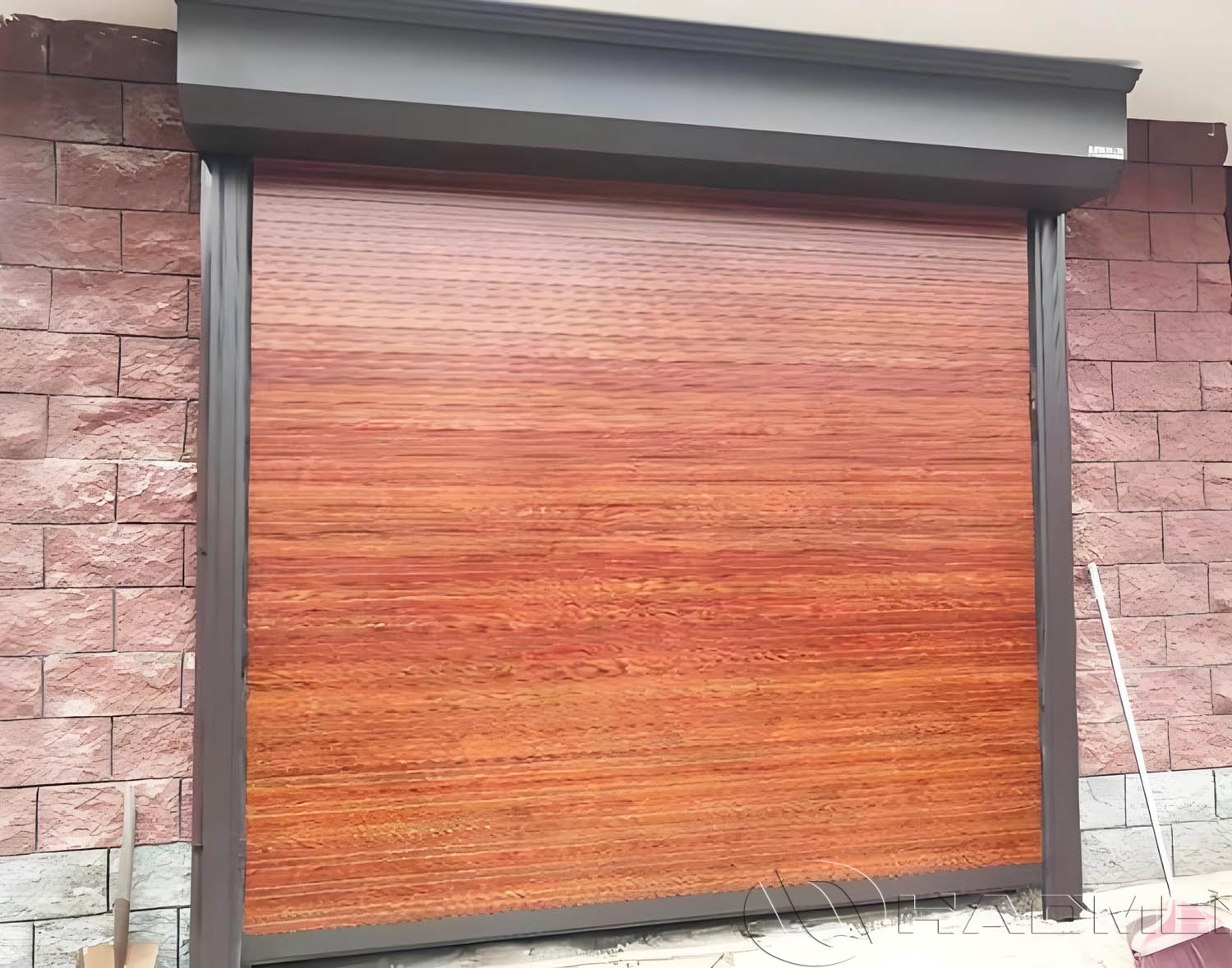

Wood grain coated aluminum coil is produced by applying a patterned surface layer over the base color system. For rolling shutter doors, this finish can simulate timber appearance while avoiding the moisture absorption, warping, and maintenance issues associated with natural wood.

Manufacturing and Quality Control Points

Stable production of prepainted PE aluminum coil for rolling shutters depends on strict control of both aluminum coil preparation and coating line parameters. The substrate surface must be clean and uniform before pretreatment. Chemical conversion treatment improves bonding between aluminum and primer, while controlled coating viscosity and oven temperature help achieve uniform film formation.

Important quality control items include:

• Aluminum thickness tolerance and mechanical properties

• Coil flatness and surface cleanliness before coating

• Pretreatment film uniformity

• Primer and top coat thickness measurement

• Pencil hardness and impact resistance testing

• T-bend or bending performance evaluation

• Cross-hatch adhesion testing

• Gloss and color difference control

• Salt spray or humidity resistance testing according to project requirements

• Slitting accuracy, burr control, and coil packing protection

For rolling shutter production, coil packing is also part of performance preservation. Protective film, moisture-resistant packaging, stable coil eye support, and edge protection help prevent handling marks, coating abrasion, and deformation before the coil enters the forming line.
