Is the Coating of 5052 Color-Coated Aluminum Coil PVDF or PE?

HAOMEI Aluminum, as a professional manufacturer of color-coated aluminum coils, produces 1-8 series color-coated aluminum coils. We can customize patterns such as wood grain, stone grain, brick texture, camouflage, and more, widely used in architectural curtain walls, ceilings, containers, roller shutters, and other applications.

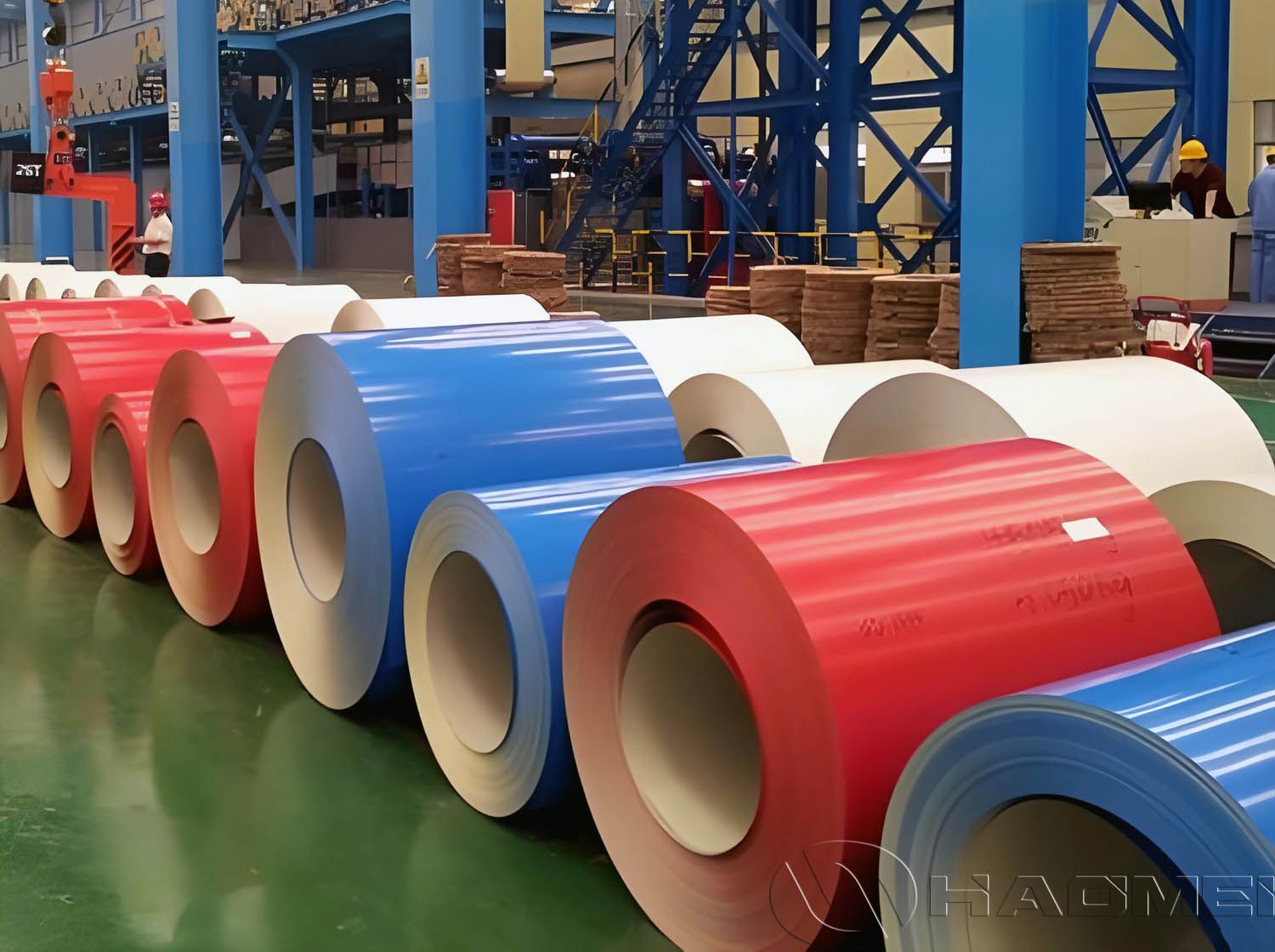

The 5052 color-coated aluminum coil produced by HAOMEI Aluminum uses 5052 aluminum alloy as the substrate, offering excellent mechanical properties, corrosion resistance, and decorative appearance. It is commonly applied in architectural curtain walls, insulated pipelines, home appliances, and instruments.

5052 alloy belongs to the aluminum-magnesium series, with moderate strength and good formability, suitable for stamping and bending. The coatings of 5052 color-coated aluminum coils usually include polyester (PE) or fluorocarbon (PVDF) types to meet different durability requirements. When selecting, users should consider thickness, color, coating thickness, and substrate temper.

Coating Types: PE & PVDF

PVDF Coating

PVDF coated aluminum coils use fluoropolymer resins (such as Kynar 500 or Hylar 5000). The stable molecular structure of fluorocarbons makes them widely recognized as having the strongest outdoor weather resistance.

Coating Thickness: Usually applied via two-coat, two-bake or three-coat, three-bake processes, with a dry film thickness of ≥25 μm (e.g., 25 μm for double-coat, 35 μm for triple-coat).

Features: Higher cost, but offers excellent weather resistance, UV resistance, corrosion resistance, and self-cleaning ability.

Applications: Designed for long-term outdoor use, such as architectural curtain walls, roofs, exterior decoration. Typically comes with 15-20 years or longer warranty due to its durability.

PE Coating

PE coated aluminum coils use polyester resin, offering good flexibility and cost-effectiveness, and are one of the most widely used color-coated coatings.

Coating Thickness: Usually applied via two-coat, two-bake process, with a dry film thickness of 16-20 μm.

Features: Lower cost, bright colors, good gloss, and strong adhesion.

Applications: Mainly for indoor use or short-term outdoor projects where weather resistance is not critical, such as interior ceilings and appliance panels. Typically, the warranty is 5-10 years.

How to Choose the Right Coating?

FAQ

Q1: How much more expensive is PVDF coating than PE coating?
A1: PVDF is 20-40% more expensive than PE due to the higher price of fluorocarbon resin and superior weather resistance.

Q2: What is the service life of 5052 color-coated aluminum coil?
A2:

• PVDF coating: 20-30+ years (almost no fading or chalking)

• PE coating: 8–10 years (slight fading or chalking)
  The lifespan depends on the environment, UV intensity, and installation method.

Q3: What is the back coating of 5052 color-coated aluminum coil?
A3: The back side is usually coated with a protective layer, such as polyester (PE) or epoxy, to provide corrosion and moisture resistance.

Q4: Can 5052 aluminum coil be customized in color?
A4: Yes. We support RAL color card, metallic colors, wood grain, stone grain, camouflage, and other custom patterns to meet customer requirements.

Q5: Do you provide samples?
A5: Yes, we provide free samples for testing purposes.
