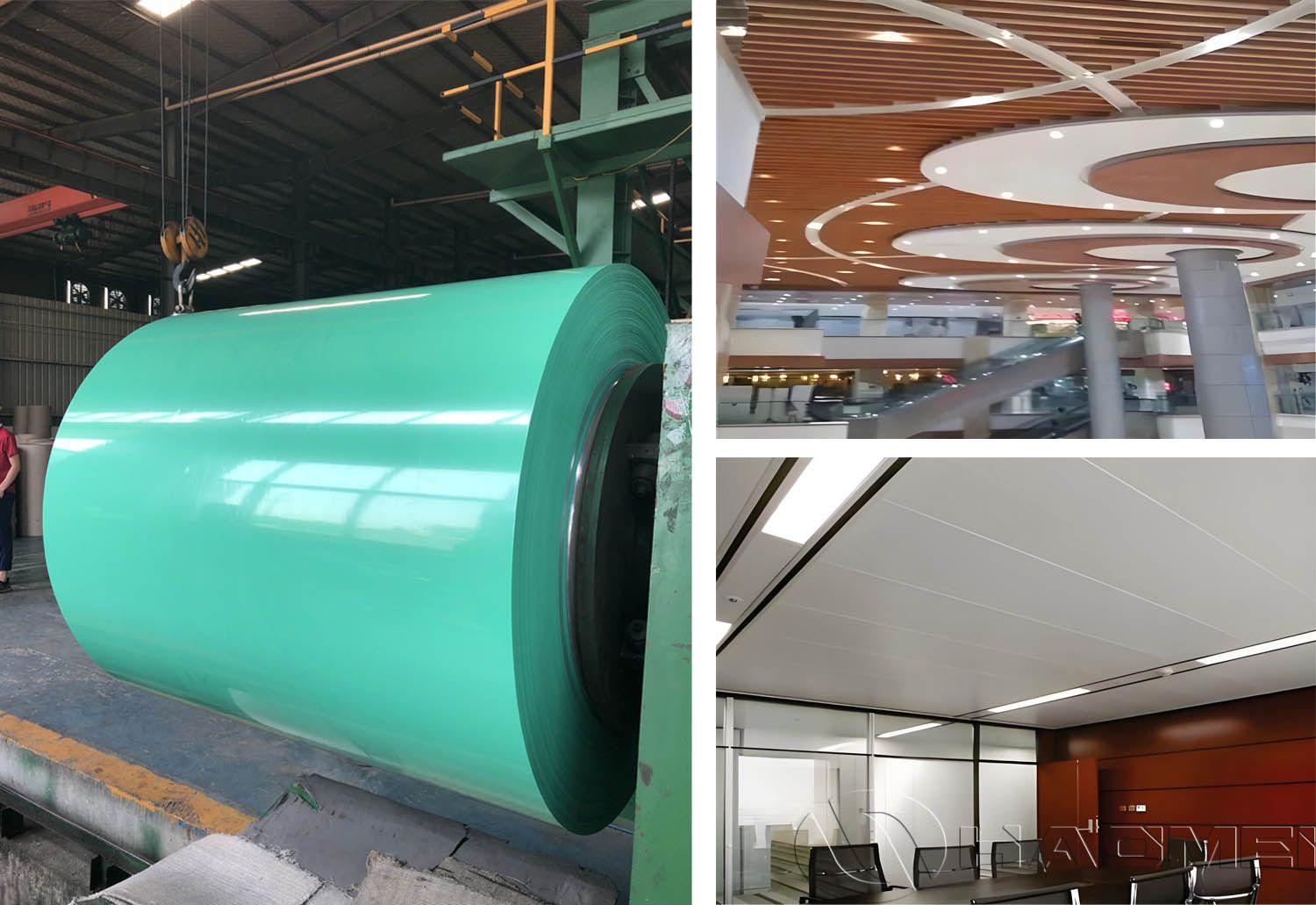

5052 PPAL Pre-Painted Aluminum Coil for Ceilings

Traditional ceiling materials such as gypsum board and mineral wool board increasingly show limitations in modern architectural environments: excessive weight, poor moisture resistance, and restricted design flexibility. The emergence of metal ceiling materials solves these disadvantages. Among them, 5052 color coated aluminum coil not only meets all functional requirements of ceiling systems but also expands aesthetic and architectural design possibilities. The following content provides a detailed introduction.

What Is 5052 PPAL Pre-Painted Aluminum Coil?

5052 is a commonly used aluminum–magnesium alloy (Mg content approx. 2.2–2.8%), offering excellent corrosion resistance, weldability, and formability in O/H temper conditions. After surface pretreatment, the 5052 aluminum coil is continuously coated with one or more layers of polymer coatings typically polyester (PE), high-durability polyester, or PVDF / PVDF-like finishes and then baked to cure.

This material, known as PPAL (Pre-Painted Aluminum Coil), combines the mechanical properties of the metal substrate with the decorative and protective functions of the coating. It is widely used for ceiling panels, ceiling grid covering strips, decorative slats, and more.

Why Choose 5052 Alloy for Metal Ceiling Materials?

The quality of PPAL pre-painted aluminum coil fundamentally depends on the substrate. 5052 aluminum alloy is selected for ceiling applications because it delivers a balance of strength, durability, and safety.

1. Balanced Strength and Excellent Flatness

5052 offers higher strength than the commonly used 3003 alloy. As a result, finished ceiling panels provide superior resistance to deformation and maintain structural stability. Once installed, the ceiling surface remains flat without sagging, ensuring long-term aesthetic performance.

2. Excellent Resistance to Moisture and Corrosion

Indoor environments especially kitchens, bathrooms, basements, and humid public spaces require materials with high corrosion resistance. Even if the coating is scratched accidentally, the 5052 substrate provides strong oxidation resistance, ensuring no rusting or degradation during long-term use.

3. Lightweight for Safer and Easier Installation

Because of aluminum's low density, ceiling panels become significantly lighter. This reduces the load on the building structure and makes installation faster, easier, and safer.

PPAL Coating System

(1) Coating Types

• PE (Polyester) Coating:
  A cost-effective solution with bright colors and good gloss, suitable for indoor spaces where extreme durability is not required.

• PVDF (Fluorocarbon) Coating:
  Delivers exceptional UV and weather resistance. Although ceilings are indoors, PVDF is ideal for areas exposed to strong daylight, large windows, or skylights, ensuring long-lasting color stability.

(2) Custom Colors & Surface Effects

PPAL supports custom RAL colors, Pantone colors, and various special effects:

• Glossy / Matte / Soft-Matte finishes

• Decorative textures: wood grain, stone grain, fabric texture, etc.

These textures provide natural aesthetics while maintaining the fire resistance and easy-clean properties of aluminum.

Technical Specifications of 5052 Coated Aluminum Coil

Performance Advantages of Using 5052 PPAL for Ceilings

1. Outstanding Corrosion Resistance

5052 alloy has excellent resistance to marine and humid environments. Combined with high-quality polymer coatings, it remains stable even in damp indoor locations such as basements, swimming pool areas, airports, and metro stations.

2. Excellent Fire Resistance

For ceiling materials, fire safety is critical. The 5052 aluminum substrate is a fully non-combustible Class A material. With a fire-retardant coating, it is ideal for hospitals, shopping malls, public stations, and other areas requiring compliance with strict fire codes.

3. Easy to Clean and Low Maintenance

The coated surface of 5052 PPAL is smooth and stain-resistant. Most dirt can be removed easily with mild cleaning agents, significantly reducing long-term maintenance and renovation costs.

4. Superior Formability

5052 offers excellent ductility and spring-back control. It supports punching, bending, forming, and deep drawing without cracking or coating damage. This makes it ideal for ceiling panels requiring bending edges, perforations, or clip-in designs.
