3105 Prepainted Aluminum Coil for Gutters

3105 Prepainted Aluminum Coil for Gutters

3105 prepainted aluminum coil for gutters is positioned as a lightweight, corrosion-resistant, and roll-formable material for residential and commercial rainwater drainage systems. It is mainly used for seamless gutters, sectional gutters, downspouts, elbows, fascia trim, gutter covers, and related roofline accessories where stable color, outdoor durability, and consistent forming performance are required.

Why 3105 Alloy Fits Gutter Manufacturing

3105 aluminum belongs to the Al-Mn series and contains a controlled manganese addition that improves strength compared with pure aluminum grades while maintaining good ductility. For gutter applications, this balance is important because the coil must pass through uncoiling, leveling, roll forming, bending, crimping, and sometimes onsite continuous forming without cracking or severe springback.

Compared with bare metal, prepainted 3105 aluminum combines the substrate and coating into a finished coil material. The coating protects the metal surface from moisture, UV exposure, acid rain, and common atmospheric contaminants, while the aluminum substrate provides natural corrosion resistance and low weight.

A typical 3105 Color Coated Aluminum Coil for gutters is supplied in H24, H26, or similar semi-hard tempers, depending on the required balance between rigidity and formability. H24 is often selected where more bending tolerance is needed, while H26 provides higher stiffness for profiles that require improved shape retention.

Core Specifications of 3105 Prepainted Aluminum Coil for Gutters

Coating Structure and Outdoor Performance

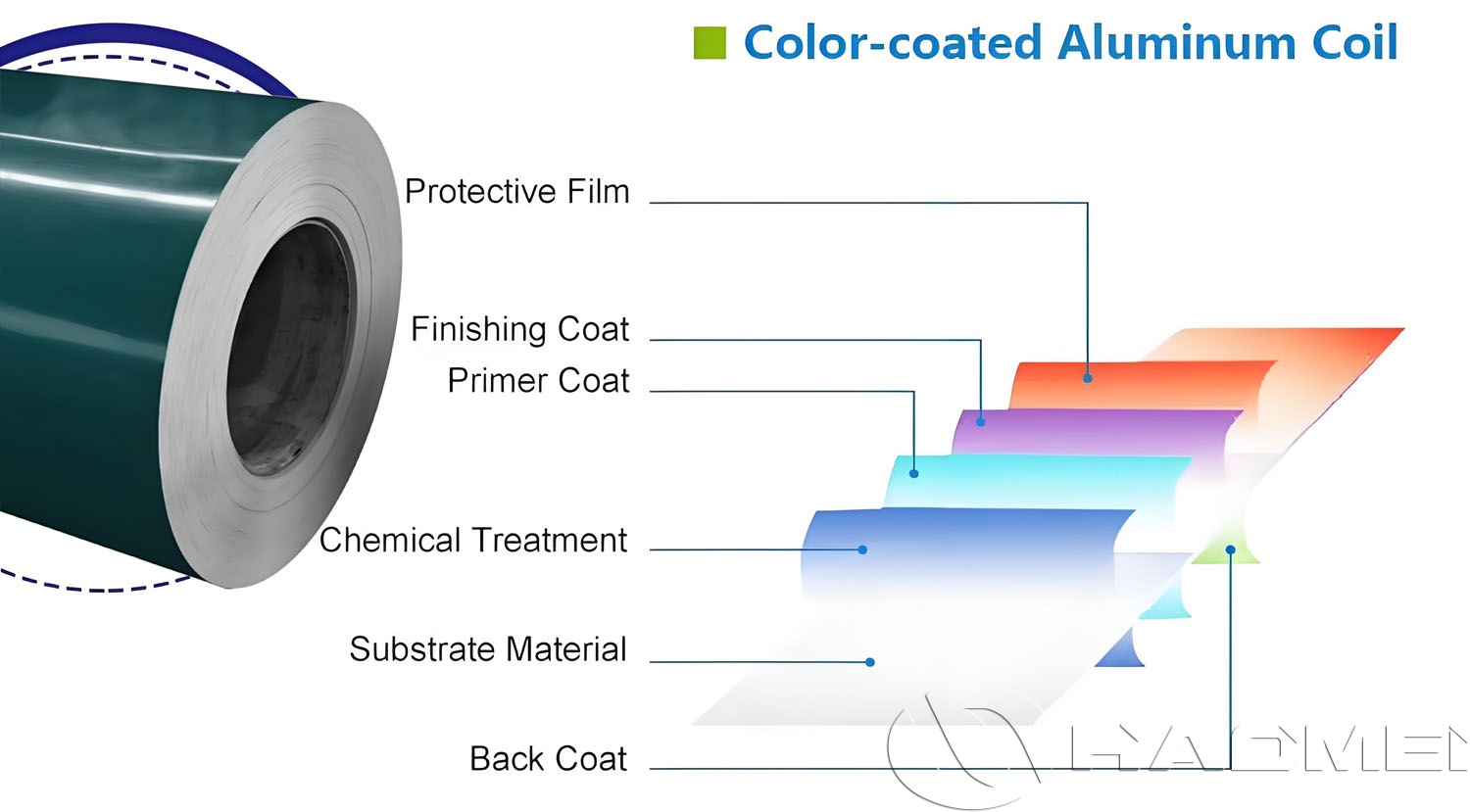

The performance of prepainted aluminum gutter coil depends on both the aluminum substrate and the coating system. A standard color-coated structure usually includes pretreatment, primer, topcoat, and back coat. Pretreatment improves adhesion and corrosion resistance, while primer enhances bonding between the aluminum and the finish coat.

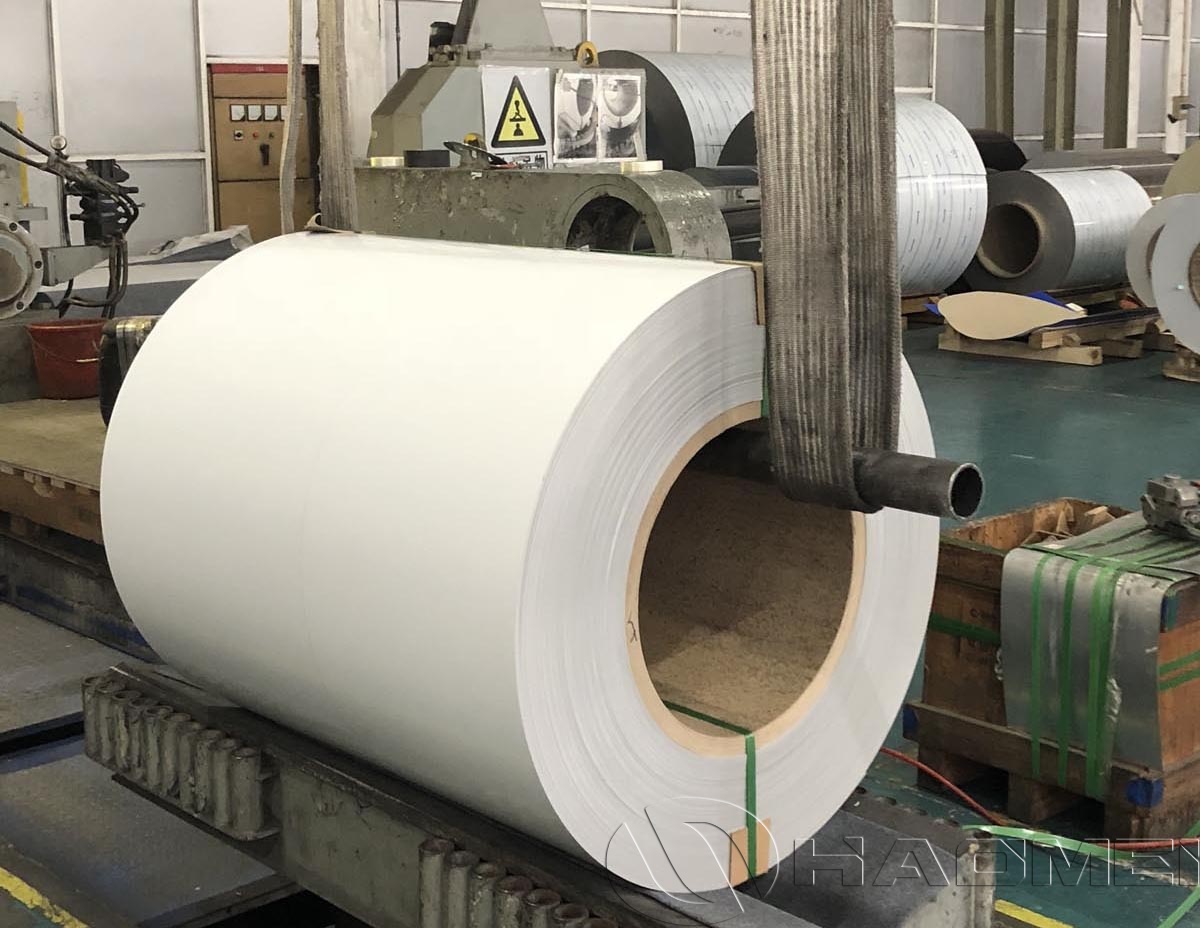

PE coating is widely used for general residential gutter systems because it offers good color coverage, processability, and cost efficiency. For projects exposed to strong sunlight, coastal air, industrial pollution, or long-term weathering, PVDF Coated Aluminum Coil provides stronger UV resistance, better chalking resistance, and longer color retention.

The coating must also be compatible with gutter roll forming. During forming, the outer surface of the gutter profile is stretched and compressed around multiple radii. A suitable coating should maintain adhesion, resist micro-cracking, and avoid visible whitening at formed edges.

Common Alloys Used for Gutter and Drainage Products

Although 3105 is one of the most practical choices for prepainted gutter coil, several aluminum alloys are used across roof drainage and architectural trim products:

• 3105 aluminum: A balanced gutter alloy with good strength, corrosion resistance, and formability. It is suitable for continuous gutter forming and colored exterior components.

• 3003 aluminum: Another Al-Mn alloy with excellent workability and corrosion resistance. It is often used in general sheet metal, roofing trim, and lighter drainage parts.

• 3004 aluminum: Offers higher strength than 3003 and 3105 due to Mn-Mg strengthening. It can be used where higher profile rigidity is needed.

• 1100 and 1060 aluminum: Commercially pure aluminum grades with excellent corrosion resistance and ductility, but lower strength. They are more suitable for simple decorative or low-load components.

• 5052 aluminum: A magnesium-containing alloy with higher strength and strong corrosion resistance. It is less common for standard gutters because it is usually specified for more demanding structural or marine-related environments.

For most gutter systems, 3105 provides a practical middle ground: stronger than pure aluminum, easier to form than many higher-strength alloys, and highly compatible with continuous coating and slitting operations.

Manufacturing Considerations for Gutter Coil

In production, the quality of 3105 prepainted aluminum coil is controlled through substrate flatness, coating adhesion, color consistency, and edge quality after slitting. Because gutter lines run at high speed, coil defects such as waves, burrs, poor paint adhesion, or inconsistent thickness can directly affect forming stability.

Key process controls include:

• Uniform substrate thickness to maintain consistent gutter profile dimensions.

• Stable pretreatment to improve coating adhesion and corrosion resistance.

• Controlled curing temperature to ensure coating hardness, flexibility, and solvent resistance.

• Accurate slitting to prevent edge burrs that may damage forming rolls or affect seam quality.

• Protective film or packaging when surface appearance must be preserved during handling.

Performance Validation

Prepainted aluminum coil for gutters is commonly evaluated through adhesion, T-bend flexibility, pencil hardness, impact resistance, salt spray resistance, gloss consistency, and color difference testing. For exterior rainwater systems, color retention and coating integrity are especially important because the exposed surface remains visible for many years.

A well-controlled 3105 prepainted aluminum coil should provide:

• Stable roll-forming performance without coating cracking.

• Good corrosion resistance in wet roofline environments.

• Consistent color from coil to coil for matched gutter and downspout systems.

• Sufficient rigidity for long gutter runs and formed profiles.

• Reliable surface protection during fabrication, transportation, and installation.
