3004 PE / PVDF Color-Coated Aluminum Coil for Shopping Mall Display Cabinets

Shopping mall display cabinets require decorative sheet materials that combine a refined appearance with stable processing performance. 3004 PE/PVDF color-coated aluminum coil is positioned for cabinet fascias, frame cladding, shelf-edge trims, back panels, light-box surrounds, column displays, and branded retail fixture components. Its balance of moderate strength, formability, low weight, and factory-applied finish supports clean lines and consistent color across large commercial interiors.

Why 3004 Aluminum Is Used for Display Cabinet Components

3004 is an aluminum-manganese-magnesium alloy in the 3xxx series. Compared with commercially pure aluminum, it provides higher strength and improved resistance to minor deformation while retaining practical bending and roll-forming properties. These characteristics are valuable for display cabinet skins and trim parts that need to remain flat after cutting, folding, hemming, or assembly.

For shopping mall fixtures, 3004 color-coated aluminum coil is commonly processed into:

• Cabinet door and drawer face panels

• Vertical frame wraps and decorative edge bands

• Product display backboards and side panels

• Jewelry, cosmetics, electronics, and luxury retail display surrounds

• Ceiling-transition trims and illuminated signage housings

• Interior cladding for modular kiosk systems

The pre-painted coil format eliminates many post-fabrication painting steps. Color consistency can be maintained across batch-produced cabinet parts, while the coil coating remains flexible enough for properly controlled bending operations.

Core Specifications of 3004 PE/PVDF Color-Coated Aluminum Coil

PE and PVDF Coating Systems

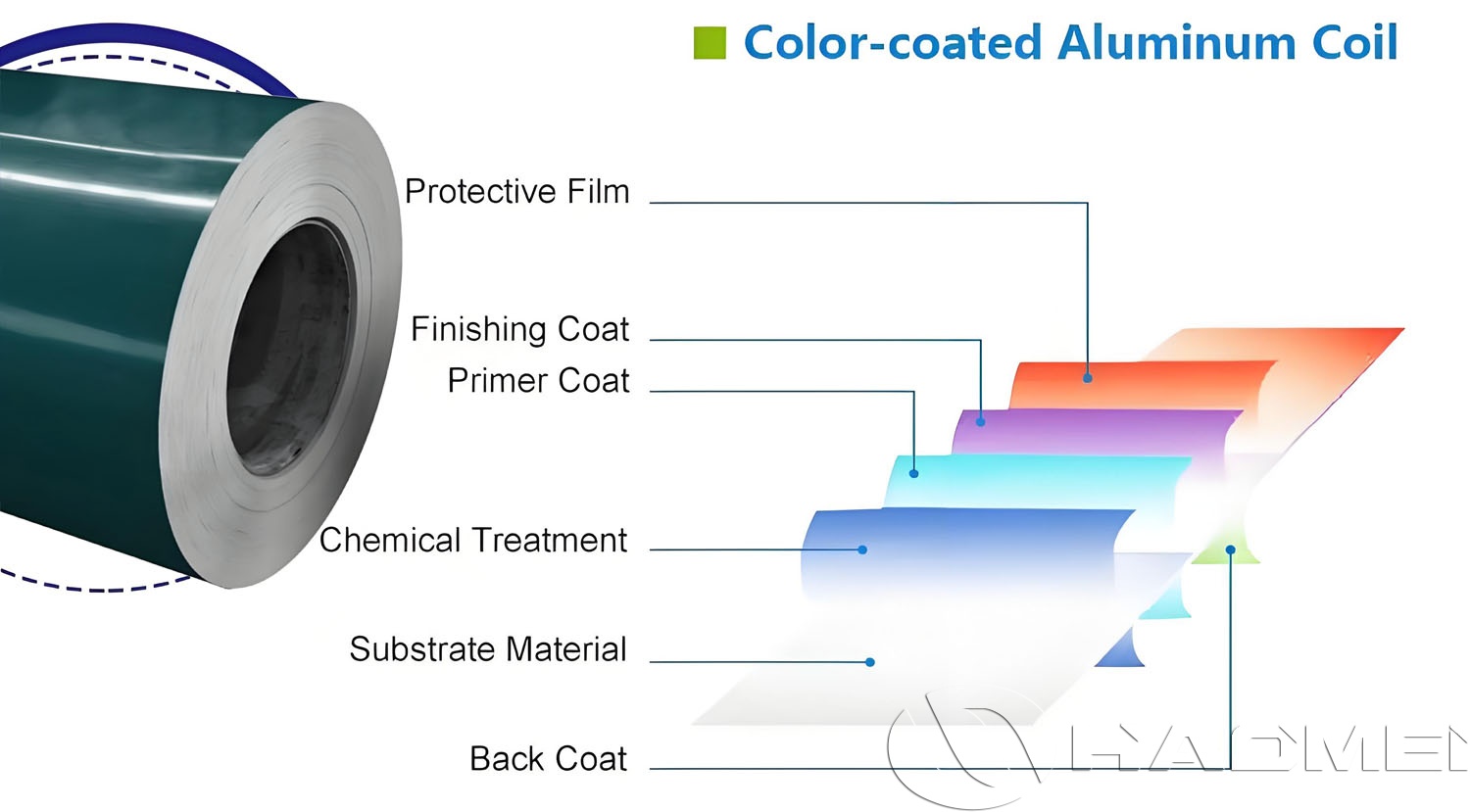

The coating system affects the visual life, cleaning behavior, and service suitability of display cabinet surfaces. Both PE and PVDF coatings are applied through a continuous coil-coating process, generally including pretreatment, primer, topcoat, curing, and back-coat application.

PE Coated Aluminum Coil

PE Coated Aluminum Coil is widely used for indoor shopping mall display cabinets where the material is protected from direct outdoor weathering. Polyester coatings provide a smooth decorative surface, stable indoor color performance, and good forming flexibility. They are suitable for cabinet panels, retail counters, shelf trims, and interior wall-facing decorative parts.

Typical PE characteristics include:

• Smooth and uniform color appearance

• Good adhesion to the aluminum substrate

• Practical resistance to routine indoor cleaning

• Flexible performance during bending and profiling

• Broad availability of gloss levels and custom colors

For indoor fixtures, PE-coated 3004 coil supports economical large-area decorative cladding while maintaining a clean commercial finish.

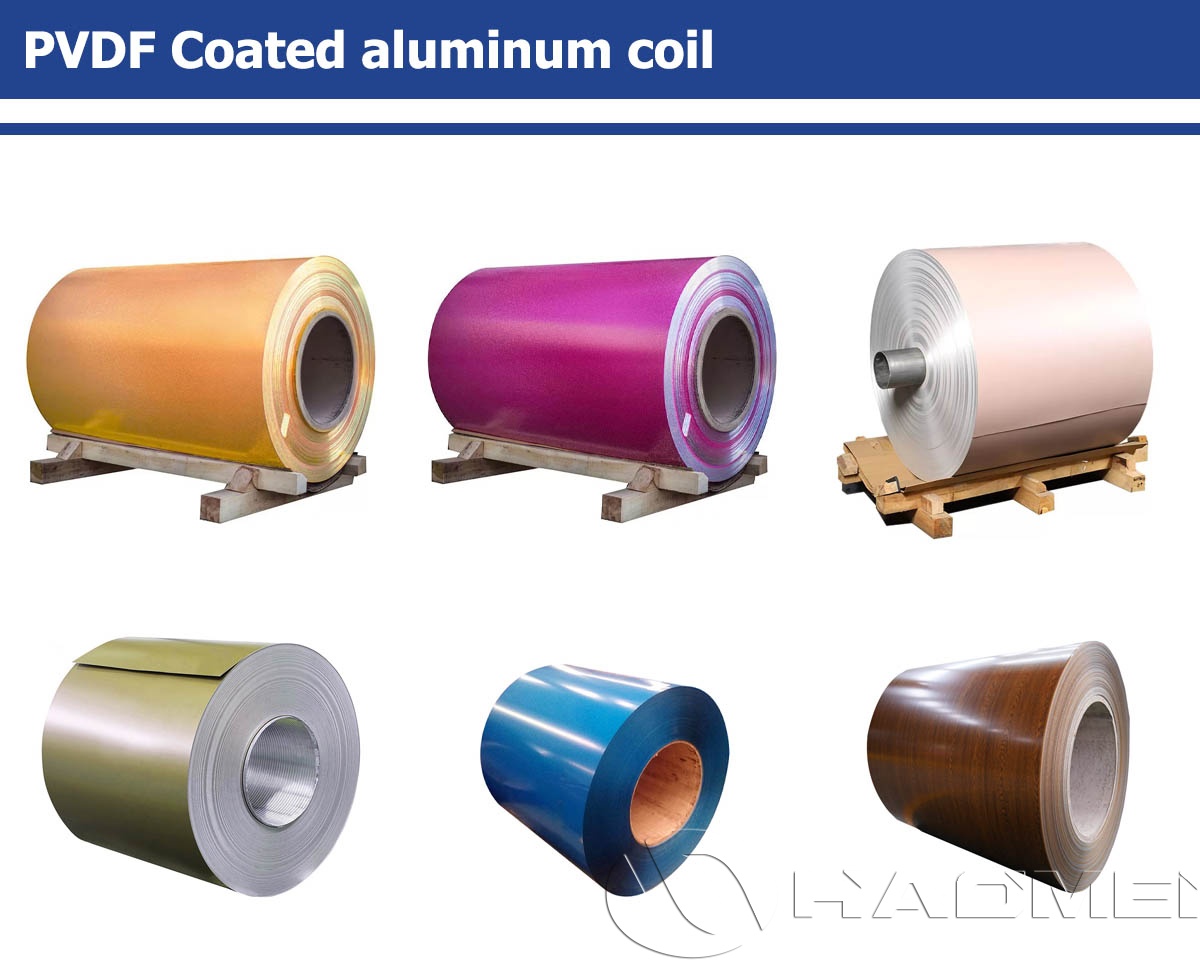

PVDF Coated Aluminum Coil

PVDF Coated Aluminum Coil is used when display cabinet components are exposed to stronger light, storefront glazing, semi-outdoor entrances, humid zones, or demanding cleaning conditions. PVDF systems offer enhanced resistance to UV exposure, chalking, fading, and chemical attack compared with conventional polyester coatings.

PVDF-coated 3004 aluminum is particularly relevant for:

• Display cabinets near exterior entrances or glazed façades

• Airport, transit hub, and high-traffic retail interiors

• Cosmetics and luxury-brand fixtures requiring long-term color stability

• Food-service display surrounds subject to frequent cleaning

• Mall kiosks located in areas with high ambient light exposure

Common Aluminum Alloys for Retail Display Cabinets

Several alloys are used in color-coated aluminum coil for commercial display systems. The appropriate alloy depends on panel geometry, required rigidity, fabrication method, and service environment.

3004 Alloy

3004 is a practical grade for medium-strength display cabinet panels and formed decorative components. Its manganese and magnesium additions provide better strength than 1100 or 1060 aluminum while preserving useful workability. It is well suited to folded cabinet skins, shallow drawn parts, stiffened panels, and trim profiles.

3003 Alloy

3003 is another commonly used 3xxx series alloy for indoor decorative panels. It has good corrosion resistance and forming performance, making it suitable for relatively simple cabinet wraps, backing panels, and non-structural trims. Compared with 3004, 3003 generally offers lower strength.

3105 Alloy

3105 is often used for pre-painted architectural and decorative sheet applications. It provides stable processing performance for roll-formed trims, ceiling components, wall panels, and retail fixture cladding. Its strength level and coating compatibility make it suitable for cabinet accessories requiring consistent profiling.

5052 Alloy

5052 is a magnesium-containing alloy with higher strength and stronger corrosion resistance than 3xxx alloys. It is used for more demanding cabinet structures, humid-area fixtures, and components subject to repeated handling. Because of its higher strength, forming parameters must be controlled more carefully for tight bends and complex shapes.

Surface Quality and Decorative Options

Shopping mall display cabinets are highly visible interior elements, so surface uniformity is an important material characteristic. Color-coated 3004 aluminum coil can be supplied in solid colors, metallic tones, brushed-look patterns, matt finishes, and high-gloss decorative finishes. The coating surface can be coordinated with glass, stainless steel, engineered stone, wood-grain elements, acrylic, and LED lighting systems.

For cabinet-facing panels, common visual requirements include color consistency between coils, controlled gloss variation, clean coil edges, stable coating adhesion, and low visible surface waviness after fabrication. Protective film may be applied to the finished face to reduce handling marks during slitting, bending, punching, and assembly.

Processing Performance for Cabinet Fabrication

3004 pre-painted aluminum coil is compatible with common display cabinet manufacturing operations, including slitting, shearing, CNC punching, press braking, roll forming, hemming, riveting, adhesive bonding, and frame assembly. Process settings should account for coating thickness, temper, bend radius, tool cleanliness, and protective-film condition.

The coating is cured before delivery, creating a stable decorative layer. During fabrication, appropriate bend radii help prevent excessive strain at fold lines. For highly visible cabinet faces, controlled handling and clean forming dies help preserve surface appearance and reduce marks, scratches, or localized coating damage.

Performance Characteristics in Mall Interiors

The finished coil combines the corrosion resistance of aluminum with the decorative and protective function of the organic coating system. In climate-controlled mall environments, 3004 PE color-coated aluminum provides dependable indoor service for most cabinet applications. PVDF coating extends surface durability where lighting intensity, ultraviolet exposure, moisture, or cleaning frequency are higher.

Key performance properties include:

• Low density for lightweight fixture construction

• Good corrosion resistance in typical indoor environments

• Stable adhesion between coating and aluminum substrate

• Resistance to routine staining and cleaning agents within coating limits

• Consistent visual finish across repeated cabinet modules

• Recyclable aluminum substrate for material recovery at end of service life

Quality Control for Pre-Painted Cabinet Coil

Production control for 3004 PE/PVDF color-coated aluminum coil typically covers substrate thickness, width tolerance, coating thickness, color difference, gloss, pencil hardness, T-bend performance, impact resistance, adhesion, solvent resistance, and surface cleanliness. These checks help maintain reliable forming behavior and visual consistency in finished shopping mall display cabinets.

For metallic, pearlescent, or custom-matched colors, coil direction and batch control are especially important because visual tone may vary with viewing angle and panel orientation. Maintaining consistent fabrication direction across adjoining cabinet surfaces supports a more uniform final appearance.
